In the world of image processing, separating objects from the background is a common task. One effective technique to achieve this is threshold segmentation. This is a technique to partition an image into foreground and background by turning it into a binary image, which involves selecting a threshold value, where all pixels brighter than this value are marked as one value (often white) and all other the opposite value (often black).

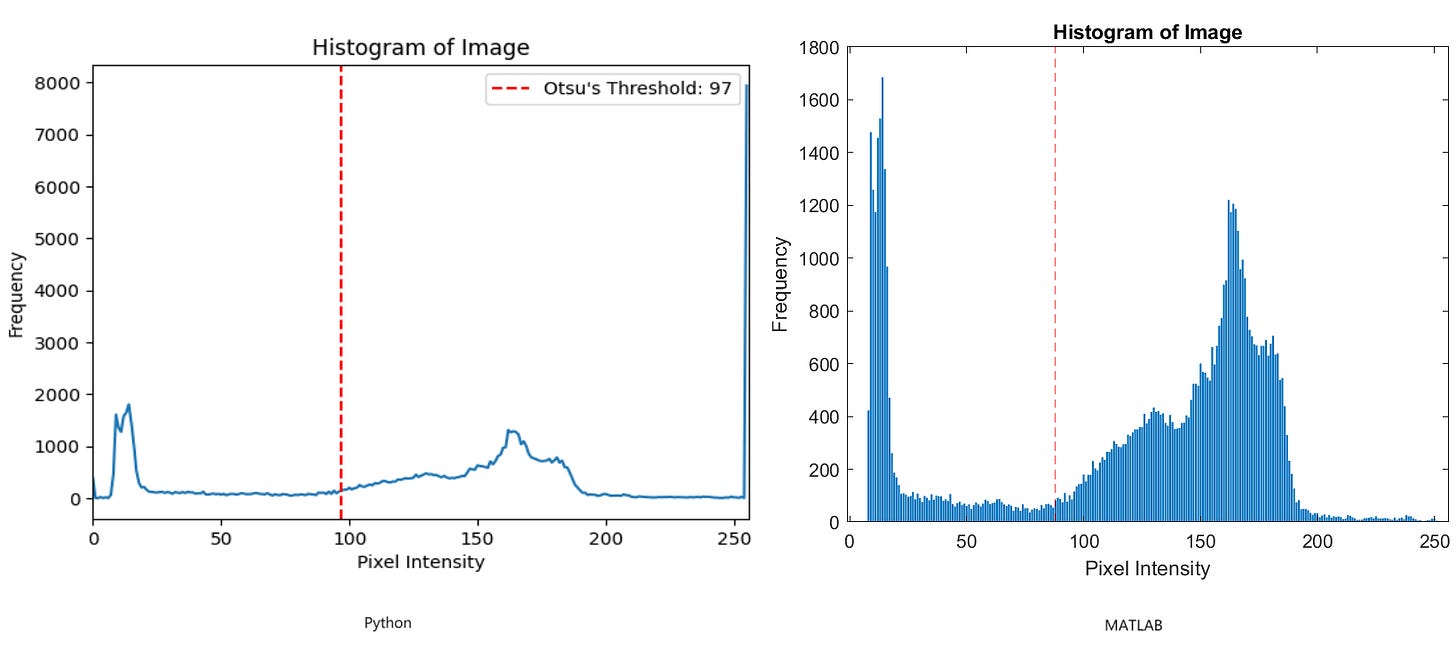

The Otsu’s method, named after Nobuyuki Otsu, automatically determines the optimal threshold value from the image’s histogram. It works by finding the threshold that minimizes the variance within the classes (foreground and background) and maximizes the variance between them. The histogram for the image below is shown as follows:

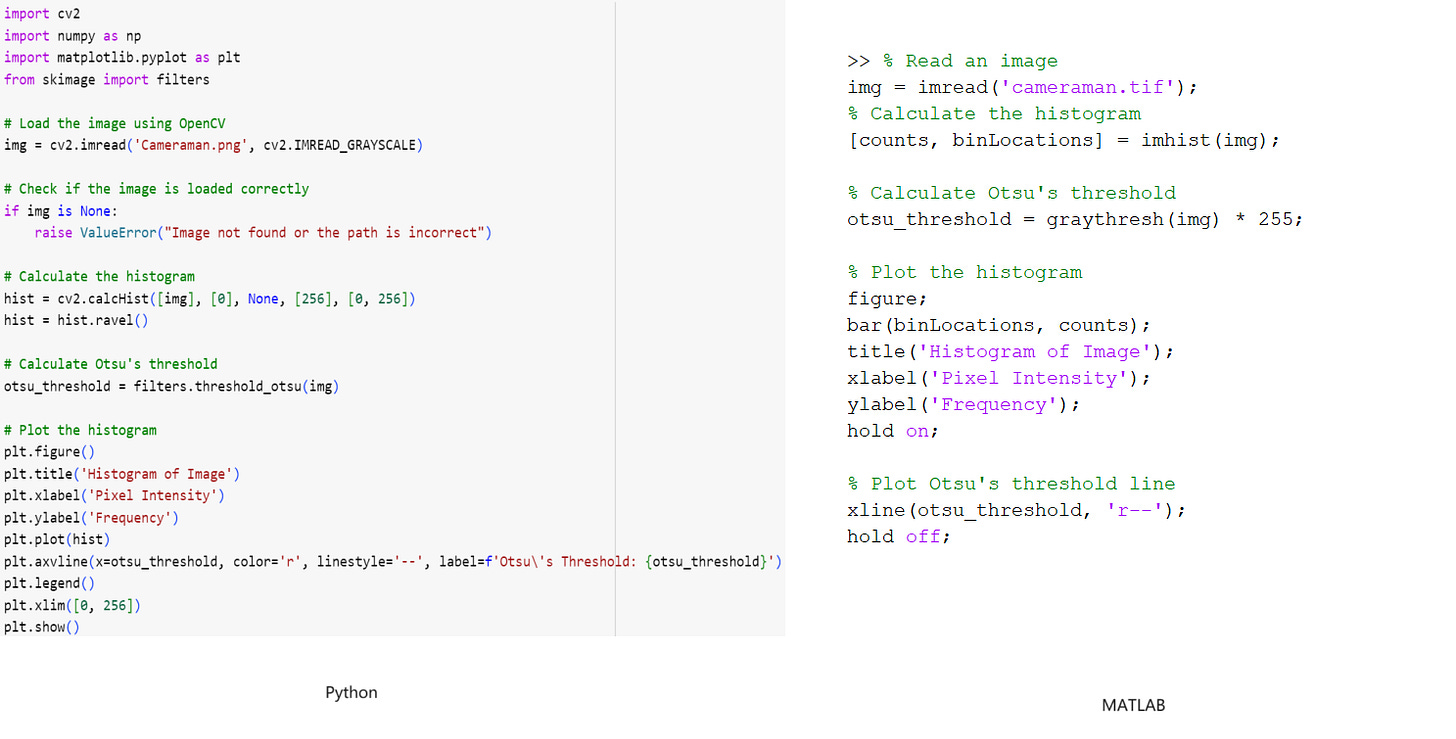

Below are the codes for plotting the histograms in Python and MATLAB:

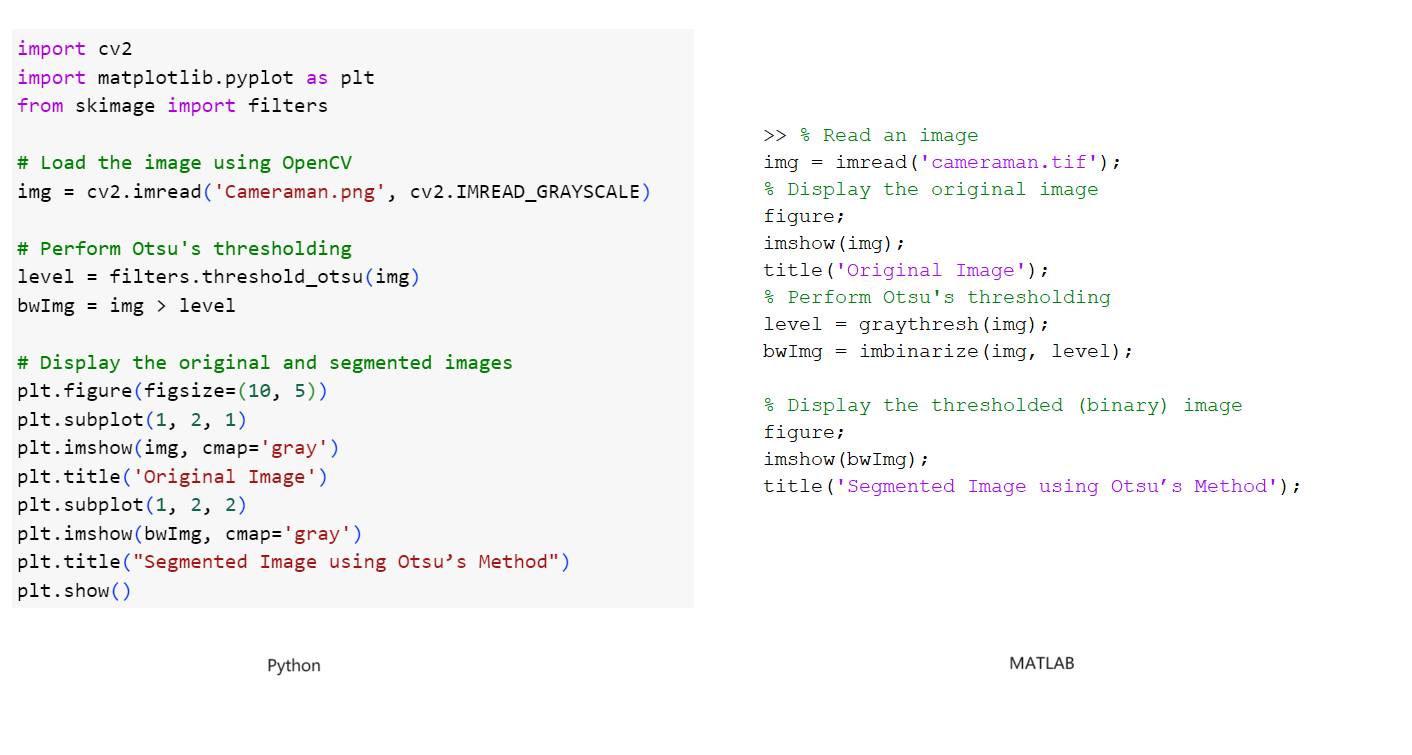

Below are the codes for extracting object from the image in Python and MATLAB:
Below is also a research paper on Otsu image segmentation published in February 2021 for those who might be interested to check out:
YouTube Tutorial

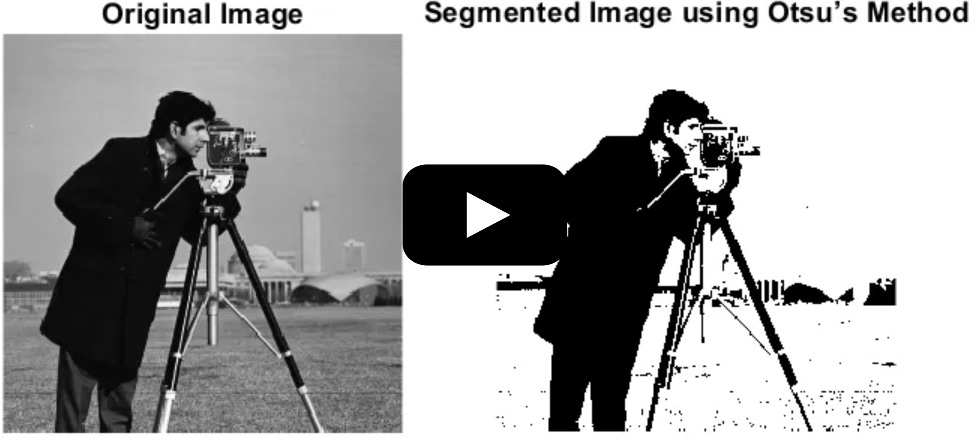

The video that goes through the above in streaming format is below.
